i.MX8M Plus

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The i.MX 8M Plus family focuses on machine learning and vision, advanced multimedia, and industrial automation with high reliability. It is built to meet the needs of Smart Home, Building, City and Industry 4.0 applications.

Powerful quad or dual Arm^® Cortex^®-A53 processor with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS.
Dual image signal processors (ISP) and two camera inputs for an effective advanced vision system.
The multimedia capabilities include video encode (including h.265) and decode, 3D/2D graphic acceleration, and multiple audio and voice functionalities.
Real-time control with Cortex-M7. Robust control networks supported by dual CAN FD and dual Gigabit Ethernet with Time Sensitive Networking (TSN).
High industrial reliability with DRAM inline ECC.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 8M Plus Processors

Get diagram PDF

Features

Multicore Processing and Memory Interfaces

4x or 2x Cortex-A53 up to 1.8 GHz
Cortex-M7 up to 800 MHz
32-bit DDR4 and LPDDR4 up to 4.0GT/s

Machine Learning and Vision

Neural Processing Unit (NPU): Delivers up to 2.3 TOPS
Dual Image Signal Processor (ISPs): Resolution up to 12MP and input rate up to 375MPixels/s
Camera Interface: 2x MIPI CSI

Advanced Multimedia and Display

Video Decode: 1080p60, h.265/4, VP9, VP8
Video Encode: 1080p60, h.265/4
GPU: 16 GFLOPS (high-precision) OpenGL^{^®} ES 3.1/3.0, Vulkan^®, Open CL^™ 1.2 FP, OpenVG^™ 1.1
Audio: 18x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-ch PDM Mic input, eARC, ASRC
Low power voice accelerator: Cadence^® Tensilica^® HiFi 4 DSP @ 800 MHz
Display: MIPI-DSI, HDMI 2.0a Tx, LVDS (4/8-lane) Tx

High Speed Interfaces

2x Gigabit Ethernet with AVB, IEEE 1588, EEE and 1x w/ TSN
2x USB 3.0/2.0 Dual-Role with PHY type C
PCIe Gen 3
3x SDIO 3.0
2x CAN FD

Industrial Reliability

DDR Inline ECC for LPDDR4 and DDR4
14 FinFET process with low soft error rate (SER)

Operating Systems

Linux^{^®}, Android^®, Windows 10 IoT Enterprise, FreeRTOS

Package and Temperature

FCBGA, 15x15 0.5 mm pitch
Consumer (0 °C to 95 °C Tj)
Industrial (-40 °C to 105 °C Tj)

Reduce Total Cost of Ownership by getting SoC Platform Development Assistance with NXP Professional Support

Are you working with NXP processors or microcontrollers?
Don’t spend your money solving issues that NXP has already solved.

With NXP’s Premium Support, you’re getting expert help and a contractually obligated agreement for high-quality technical assistance. Enjoy guaranteed response times and direct access to NXP engineers who have likely already solved the issues you are facing.

Benefits include:

Fast, personalized responses
Single point of contact
Eliminate spending time/energy/money on “solved problems”
Direct support from NXP engineers with rapid routing to subject matter experts if required
Guaranteed response time – with easy and effective escalation path if needed.
Peace of mind with contract-backed technical support
Tell your customers that you have a support agreement with NXP

Click here to discover how Premium Support can optimize your next design.

Product Programs

EdgeLock^® Assurance

The i.MX 8M Plus applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
BSDL file for i.MX 8M Plus

BSDLRev 0Mar 12, 2021 08:58:0061.9 KBIMX8MP_15X15
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
i.MX 8M Plus 15x15 IBIS Model

ZIPRev 2Oct 20, 2020 09:25:00ibis_imx8mp_v2_20201023

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 8 hardware offerings

Evaluation and Development Boards
4K dart BCON for MIPI camera module for i.MX 8M Plus Applications ProcessorFeatured

MIPI-CAMERA
Evaluation and Development Boards

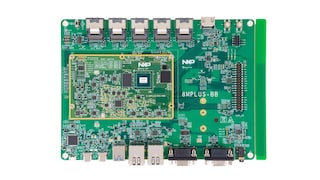

i.MX 8M Plus Evaluation Kit Enabling Power MeasurementFeatured
Active

8MPLUSLPD4-PEVK
Evaluation and Development Boards
Evaluation Kit for the i.MX 8M Plus Applications ProcessorFeatured

8MPLUSLPD4-EVK
Additional hardware available. View our featured partner solutions.
Complete Solution
AI Robot Platform Based on i.MX 8M Plus

AI-ROBOT-PLATFORM
Complete Solution
NavQPlus AI/ML Companion Computer EVK for Mobile Robotics, ROS, Ground Stations and Camera Heads

8MPNAVQ
Evaluation and Development Boards
Maivin AI Vision Starter Kit
Preproduction

MAVK-SMART-8MPLUS-CAMERA
Evaluation and Development Boards
i.MX Audio Board
Active

MCIMX8M-AUD
Evaluation and Development Boards
Ara-2 M.2 (M-Key) Module for Generative AI Workloads
Preproduction

ARA-2-2M-MODULE

Show All

1-5 of 92 hardware offerings

Embedded Board Solutions
HummingBoard 8P Edge AI SBC

i.MX8M Plus Quad-core Cortex A53 (up to 1.8GHz) with 8GB LPDDR4. Dual Gigabit Ethernet, PoE, MIPI-CSI, HDMI. Hailo-8 AI accelerator via M.2 PCIe. Supports 4K sensor at 30...

By SolidRun Ltd Gold Partner
Embedded Board Solutions
ORCA SOM - i.MX8M Plus

ORCA SOM is our solution for edge applications where the balance between the performances, the power consumption are important. Where Linux, RTOS and NPU are needed ORCA ...

By DAVE Embedded Systems Gold Partner
Embedded Board Solutions
SmarCore MX8M Plus

Engicam introduces a new module based on i.MX8M Plus processor in the SMARC standard pinout 2.1.

By Engicam Gold Partner
Embedded Board Solutions
Development Kit for Summit SOM 8M Plus

Our new Summit SOM 8M Plus is powered by NXP’s innovative i.MX 8M Plus processor and 88W8997 wireless silicon coupled with onboard NXP PMICs (PCA9450CHN and PM823UK), per...

By Ezurio Gold Partner
Embedded Board Solutions
GW7500-21 i.MX 8M Plus Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Plus quad-core CPU, one full Mini-PCIe slot, one half mini PCIe slot, USB, MicroSD & SIM, DIO, RTC, PoE...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
i.MX8M Mini SOM

i.MX8M Mini SOM offer a compact System-on-Module platform with robust processing, energy efficiency and AI acceleration using 2803S Neural Accelerator – designed for next...

By SolidRun Ltd Gold Partner
Embedded Board Solutions
GW7101-21 i.MX 8M Plus Industrial Single Board Computer

Single board computer that features an i.MX 8M Plus quad core CPU, one GbE, one Mini-PCIe slot, USB, Nano SIM, DIO, SPI, UART, TPM, GPS, RTC, Passive PoE, Industrial Temp...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
Nitrogen8M Plus SOM

Features i.MX 8M Plus MPU, Wifi/BT, PCA9450CHN PMIC, 2-4GB of LPDDR4 RAM, and 16-128GB eMMC. Nitrogen8M Plus offers multiple Carriers & Accessories.

By Ezurio Gold Partner
Embedded Board Solutions
i.Core MX8M Plus

i.Core MX8M Plus is based on i.MX 8M Plus processor equipped with quad-core Arm® Cortex®-A53 plus Cortex-M7. The i.MX 8MP series features offer powerful video processing ...

By Engicam Gold Partner
Embedded Board Solutions
System on module FETMX8MP-C

FETMX8MP-C System On Module is based on the NXP i.MX8M Plus processor. This processor focuses on machine learning and vision, advanced multimedia, and industrial automati...

By Forlinx Embedded Technology Co., Ltd Gold Partner
Embedded Board Solutions
GW7401 i.MX 8M Plus Industrial Single Board Computer

Industrial SBC featuring i.MX 8M Plus Quad ARM CPU, DDR4, 64GB eMMC, 6 GbE, 3 Mini-PCIe sockets, 1 M.2 socket, USB3.0, I2C, DIO, ADC, SPI, CAN, UART, RS232/485, RTC, MIPI...

By Gateworks Corporation Gold Partner
Embedded Board Solutions

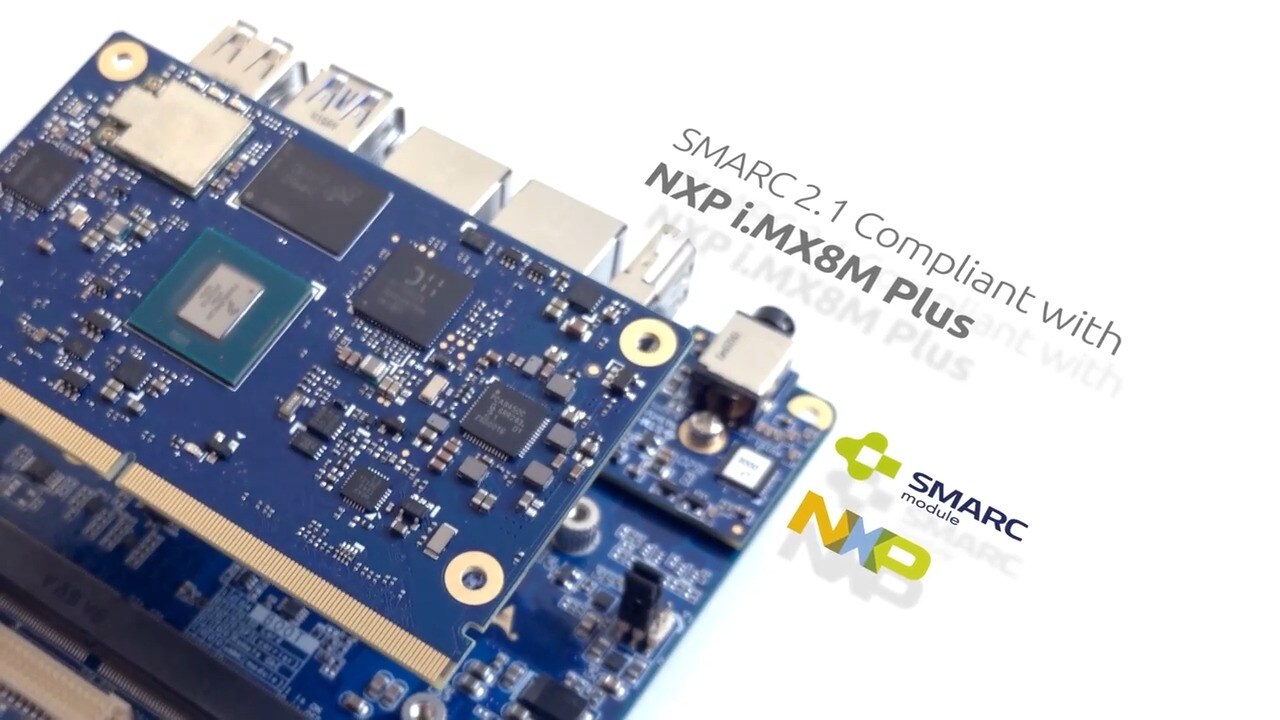

i.MX 8M Plus SMARC SOM

• i.MX 8M Plus SoC based SMARC v2.1.1 Compatible SOM apt for AI and ML applications • GPU,VPU, NPU,ISP & Display Controller support on SoC • SOM supports 2x Gbps Ethern...

By iWave Global Gold Partner
Embedded Board Solutions
FS 8MP OSM-SF

Tiny but powerful LGA solder module (30x30mm) based on the OSM Standard S. Based on NXP i.MX 8M Plus; with LAN, SDIO, CAN, USB OTG, UART, I2C, Audio, RTC, LVDS, DVI, MIPI...

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions
i.MX 8M Plus OSM-LF LGA System on Module

i.MX 8M Plus Q/QL/D CPU with 64-bit ARMv8 Architecture NPU with up to 2.3 TOP/s Neural Network performance Upto 8GB LPDDR4 Memory IEEE 802.11a/b/g/n/ac/ax Wi-Fi & Blue...

By iWave Global Gold Partner
Embedded Board Solutions
MSC SM2S-IMX8PLUS

MSC SM2S-IMX8PLUS offers dual/quad-core ARM Cortex-A53 processors in combination with ARM Cortex-M7 real-time processor, 2D/3D GPU and a Machine Learning Accelerator (2.3...

By Avnet Embedded Platinum Partner
Embedded Board Solutions
VAR-SOM-MX8M-PLUS System on Module

Highly Scalable SoM based on i.MX 8M Plus Quad 1.8GHz ARM Cortex-A53 + 800MHz Cortex-M7, integrated AI/ML, 2D/3D GPU, H.265/264 HD video engines, certified dual-band Wi-F...

By Variscite Platinum Partner
Embedded Board Solutions
TX8P for i.MX 8M Plus

The TX8P is a 200-pin SODIMM Computer-on-Module. The COM includes 4 ARM Cortex A53 cores, 2GB LPDDR4 RAM, 8GB eMMC Flash, and a standard -30 to 85C Operating temperature.

By Ka-Ro electronics GmbH Gold Partner
Embedded Board Solutions
UCM-iMX8M-Plus

UCM-iMX8M-Plus is an ultra miniature (28 x 38) i.MX8M Plus System-on-Module designed for integration into embedded applications. Key features: up-to 8GB RAM, 64GB eMMC, ...

By Compulab Gold Partner
Embedded Board Solutions
GW7301-21 i.MX 8M Plus Industrial Single Board Computer

Industrial SBC featuring the i.MX 8M Plus Quad CPU with three Mini-PCIe slots for Wi-Fi and Cellular flexibility. It also features Dual Gigabit Ethernet Ports, I2C, DIO, ...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
CL-SOM-iMX8PLus

CL-SOM-iMX8Plus is a miniature i.MX8M-Plus System-on-Module designed for integration into embedded applications. Key features: 4GB RAM, 128GB eMMC, 2x GbE, PCIe, certifie...

By Compulab Gold Partner
Embedded Board Solutions
MYC-JX8MPQ SOM

The MYC-JX8MPQ SOM is a high performance CPU module based on NXP i.MX8M plus mpu. It is in MXM 3.0 form-factor design ,can support Linux ,and can work in both commercial ...

By MYIR Electronics Limited Gold Partner
Embedded Board Solutions
TQMa8MPxL

Embedded Cortex®-A53 module based on i.MX 8M Plus with Machine Learning Accelerator

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions
Verdin iMX8M Plus

Verdin iMX8M Plus includes a Neural Network Processing Unit ideal for Machine Learning applications. Toradex provides integration with popular machine learning frameworks...

By Toradex® Platinum Partner
Embedded Board Solutions
MBa8MP-RAS314

Single Board Computer (SBC) based on TQMa8MPxL as a high-end platform with TSN Gigabit Ethernet, ML-Accelerator and Multidisplay Graphics support.

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions
PicoCore™MX8MP

Tiny multi-media COM (35x40mm) with WLAN/BT and LVDS based on NXP i.MX 8M Plus (PicoCoreMX8MP)

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions

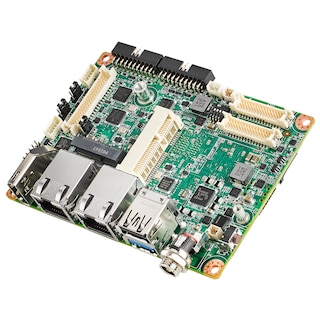

RSB-3720

Advantech RSB-3720 2.5” UIO40-Express SBC by NXP i.MX8M Plus, with a NPU up to 2.3TOPS, is the most compact Edge AI Solution. Integrating Eyes & Ears for AI, multi-displa...

By Advantech Co., Ltd. Gold Partner
Embedded Board Solutions
i.MX8M Plus–System on Module(SOM)

FVC-MX8MPlus-SOM is an embedded single board module optimized for performance and power with a life cycle that removes concerns for obsolescence. The board is designed to...

By Firstview Consultants Gold Partner
Embedded Board Solutions
SP2-IMX8

ADLINK Open Frame Touch Panel PC Based on NXP i.MX8M Plus processor with PCAP touch screen (7"/10"), Supports Multi-OS: Linux, Windows, Android, 32GB eMMC and Micro SD sl...

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
i.MX 8M Plus Pico ITX SBC

i.MX 8M Plus Q/QL/D CPU with 64-bit ARMv8 Architecture NPU with up to 2.3 TOP/s Neural Network performance Up to 8GB LPDDR4 Memory Multi-OS Platform Support OSM Size ...

By iWave Global Gold Partner
Embedded Board Solutions
SECO SOM-SMARC-MX8M-Plus

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 8M Plus Applications Processors.

By SECO Gold Partner
Embedded Board Solutions
GW7400 i.MX 8M Plus Industrial Single Board Computer

Industrial SBC featuring i.MX 8M Plus Quad ARM CPU, DDR4, 8GB eMMC, 1GB DRAM, 6 GbE, 3 Mini-PCIe sockets, 1 M.2 socket, USB3.0, I2C, DIO, ADC, SPI, CAN, UART, RS232/485, ...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
GW7200-20 i.MX 8M Plus Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Plus quad-core CPU, dual GbE, two Mini-PCIe slots, USB, MicroSD & SIM, DIO, RTC, PoE, Industrial Temper...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
phyCORE-i.MX 8M Plus

Neural Processing Unit, 2x Image Signal Processor + 2x MIPI CSI-2 HiFi Audio DSP, 2x LVDS, MIPI DSI-2, HDMI, Real-time control with Cortex-M7, 2x GB Ethernet with TSN, 2...

By PHYTEC Platinum Partner
Embedded Board Solutions
HummingBoard Pulse

HummingBoard Pulse is a match between the modular, flexible and feature-rich HummingBoard platform, and the robust i.MX8M Plus SOM with its state-of-the-art processing, M...

By SolidRun Ltd Gold Partner
Embedded Board Solutions

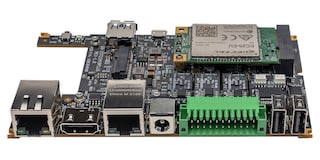

SBC-IOT-IMX8PLUS

SBC-IOT-IMX8PLUS is a miniature i.MX8M Plus Single Board Computer designed for industrial control and monitoring applications.

By Compulab Gold Partner
Embedded Board Solutions
SECO SOM-Trizeps-VIII-MX8M-Plus

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX 8M Plus Applications Processors.

By SECO Gold Partner
Embedded Board Solutions
Summit SOM 8M Plus

Our new Summit SOM 8M Plus is powered by NXP’s innovative i.MX 8M Plus processor and 88W8997 wireless silicon coupled with onboard NXP PMICs (PCA9450CHN and PM823UK), per...

By Ezurio Gold Partner
Embedded Board Solutions
MBa8MPxL

Single Board Computer (SBC) based on the i.MX8M Plus TQMa8MPxL can be used as an inddustrial Baseboard or as an Evaluation Platform

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions
IOT-GATE-IMX8PLUS

IOT-GATE-IMX8PLUS is a miniature, rugged i.MX8M Plus Internet-of-Things Gateway designed for industrial control and monitoring and custom gateway/router applications.

By Compulab Gold Partner
Embedded Board Solutions
SP2-IMX8-SBC

ADLINK 2.5" SBC Motherboard Based on NXP® ARM Processor with 32GB eMMC and external Micro SD slot, LVDS/MIPI-DSI, HDMI graphic output, support 12-24V DC, and flexible I/O...

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
QSXP for i.MX 8M Plus

At 29x29mm by 2.6mm high, QSXP is the smallest Computer-on-Module available for NXP i.MX 8M Plus. The QFN SMT package is ideal for reliable, high-volume SMT assembly.

By Ka-Ro electronics GmbH Gold Partner
Embedded Board Solutions
Armadillo-IoT Gateway G4

Edge AI gateway for IoT-system by i.MX8M Plus with NPU. It's operated by Container based Linux OS.

By Atmark Techno, Inc. Gold Partner
Embedded Board Solutions
EDM-G-IMX8M-PLUS

NXP i.MX8M Plus EDM Type G System-on-Module is built around NXP i.MX8M Plus applications processor based on ARM Cortex-A53 and Cortex-M7 architecture with built-in 2.3TOP...

By TechNexion Ltd Gold Partner
Embedded Board Solutions
GW7201-21 i.MX 8M Plus Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Plus quad-core CPU, dual GbE, 2 Mini-PCIe slots, USB, MicroSD & SIM, DIO, RTC, PoE, GPS, TPM, Industria...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
conga-QMX8-Plus Qseven Computer-On-Mocule

Qseven module based on NXP i.MX 8M Plus processor series with ARM 4-Core Cortex-A53 / M7 + NPU Enhanced AI, Machine Learning and Vision capabilities featuring NPU and in...

By congatec Gold Partner
Embedded Board Solutions
i.MX8M Plus SOM

SolidRun’s i.MX8M Plus Computer-on-Module enables OEMs and integrators to create and deploy advances and power-efficient solutions at the edge. Based on Arm Cortex A53 te...

By SolidRun Ltd Gold Partner
Embedded Board Solutions
AXON-IMX8M-PLUS

AXON System-on-Module with NXP i.MX8M Plus Wi-Fi 802.11ac, Bluetooth, eMMC and upto 8GB LPDDR4 memory. Linux and Android AOSP opensource BSP

By TechNexion Ltd Gold Partner
Embedded Board Solutions
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold Partner
Embedded Board Solutions
SIngle board computer OKMX8MP-C

OKMX8MP-C development board adopts NXP i.MX 8M Plus high-performance processor development, built-in NPU, ISP, AI computing capacity up to 2.3TOPS, can meet the needs of ...

By Forlinx Embedded Technology Co., Ltd Gold Partner
Embedded Board Solutions
LEC-IMX8MP

ADLINK LEC-IMX8MP, based on NXP i.MX 8M Plus SoC with an NPU, is a SMARC 2.1 module focusing on machine learning and vision, advanced multimedia, and industrial IoT.

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
DART-MX8M-PLUS System on Module

Small-size 30x55mm SoM based on i.MX 8M Plus Quad 1.8GHz ARM Cortex-A53 + 800MHz Cortex-M7, integrated AI/ML, 2D/3D GPU, H.265/264 HD video engines, certified dual-band W...

By Variscite Platinum Partner
Embedded Board Solutions
SMARC iMX8M Plus

Toradex SMARC iMX8M Plus offers a cost-effective solution for running Linux with a modern graphical interface while delivering sufficient performance for typical industri...

By Toradex® Platinum Partner
Embedded Board Solutions
CuBox M

CuBox-M and its iMX8M Plus based SOM adds 2.3 TOPs of neural network acceleration inside. This makes it the perfect quick to market solution for your latest vision proces...

By SolidRun Ltd Gold Partner
Embedded Board Solutions
GW7100-20 i.MX 8M Plus Industrial Single Board Computer

Single board computer that features an i.MX 8M Plus quad core CPU, one GbE, one Mini-PCIe slot, USB, Nano SIM, DIO, SPI, UART, Optional GPS, RTC, Passive PoE, 8GB eMMC Fl...

By Gateworks Corporation Gold Partner
Embedded Board Solutions
conga-SMX8-Plus SMARC Computer-On-Module

SMARC 2.1 module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU

By congatec Gold Partner
Embedded Board Solutions
ROM-5722

Advantech ROM-5722 SMARC 2.1 Computer-on-Module, powered by NXP i.MX 8M Plus SOC, with the NPU supporting up to 2.3TOPS AI inference capability, is the most compact desig...

By Advantech Co., Ltd. Gold Partner
Embedded Board Solutions
I-Pi SMARC IMX8M Plus

The I-Pi SMARC IMX8M Plus is a SMARC-based smart solution development kit powered by NXP i.MX8M Plus (Quad-core Arm Cortex-A53) processor with a Neural Processing Unit (N...

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
ROM-3620

Advantech ROM-3620 RTX2.1 Computer-on-Module is powered by NXP i.MX 8X SoC, for mid-range automotive and industrial markets, RTX board to board connectors make it a rugge...

By Advantech Co., Ltd. Gold Partner
Evaluation and Development Boards
System on module IAC-IMX8MP-CM

IAC-IMX8MP-CM System on module,it adopts NXP i.MX8M Plus processor.The i.MX8M Plus is a powerful quad ARM Cortex-A53 processor with speed 1.6GHz and one ARM Cortex-M7 800...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold Partner
Evaluation and Development Boards
conga-SEVAL Evaluation carrier board

Evaluation Carrier Board compatible with SMARC modules

By congatec Gold Partner
Evaluation and Development Boards
Ivy Carrier Board

The Ivy Industrial Carrier Board is optimized for robust environments. It offers optocouplers, industrial interfaces like RS-485, and isolated I/O, extended temperature r...

By Toradex® Platinum Partner
Evaluation and Development Boards
JODY-W2 EVK

Evaluation Kit for JODY-W263

By u-blox AG Gold Partner
Evaluation and Development Boards
Mallow Carrier Board

Product Design and Component selection are optimized to provide robustness in challenging environments while keeping the cost low. Long-term supported software and simple...

By Toradex® Platinum Partner
Evaluation and Development Boards
Ka-Ro QSBASE4 Evaluation Kit

The QSBASE4 is a ready to use evaluation kit for all QS modules. The kit is sold without module. A socketed version of the desired module must be ordered separately.

By Ka-Ro electronics GmbH Gold Partner
Evaluation and Development Boards
Verdin Development Board

With the Verdin Development Board, you can try out different power control concepts, from the simplest to the most advanced ones - including granular power control of eac...

By Toradex® Platinum Partner
Evaluation and Development Boards
Ka-Ro TX8M Mini Development Kit

Development Kit includes: Ka-Ro TX8M SOM 10.1" LVDS Display with Cap touch MIPI-CSI Camera interface Power Supply and cables uBoot Bootloader and sources Linux BSP ...

By Ka-Ro electronics GmbH Gold Partner
Evaluation and Development Boards
VEST i.MX8M Plus Development Kit

VEST i.MX8M Plus Dev Kit VEST EDG i.MX8M Plus System On Module VEST OSM i.MX8M Plus Open Standard Module

By Advanced Products Corporation Pte Ltd Gold Partner
Evaluation and Development Boards
Starterkit PicoCore™MX8MP Linux

Extensive Starterkit with powerful Computer On Module (35x40mm) based on NXP i.MX 8M Plus (PicoCoreMX8MP) incl. Linux, baseboard, cable kit, LVDS display, and other acces...

By F&S Elektronik Systeme GmbH Gold Partner
Evaluation and Development Boards
Yavia Carrier Board

The intended use of the Yavia carrier board is application software development. Be it USB 3.x, Gigabit Ethernet, HDMI, MIPI CSI or PCIe: the Yavia has them. Built-in UAR...

By Toradex® Platinum Partner
Evaluation and Development Boards

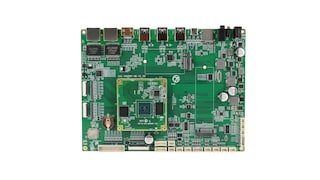

Development Board IAC-IMX8MP-Kit

IAC-IMX8MP-Kit Development Board,it adopts NXP i.MX8M Plus processor.The i.MX8M Plus is a powerful quad ARM Cortex-A53 processor with speed 1.6GHz and one ARM Cortex-M7 8...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold Partner
Evaluation and Development Boards

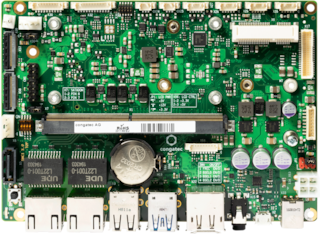

conga-SMC1/SMARC-ARM carrier board

Compact sized Carrier Board for ARM based SMARC 2.0 modules

By congatec Gold Partner
Evaluation and Development Boards
i.MX 8M Plus SMARC Development Kit

i.MX 8M Plus SMARC Dev Kit includes i.MX 8MPlus SoM & compatible carrier card.The board is highly packed with all necessary onboard connectors (Ethernet, PCIe, USB, etc.)...

By iWave Global Gold Partner
Evaluation and Development Boards
Dahlia Carrier Board

Dahlia is a compact carrier board providing easy access to the most common feature. Several display adapter boards will be available to support HDMI, LVDS, DSI and Parall...

By Toradex® Platinum Partner
Complementary Silicon or Component
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold Partner
Complementary Silicon or Component
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold Partner
Module
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
3SM1009 NXP i.MX 8M Plus - Arm® Cortex®CPU

3SM1009 is a NXP i.MX 8M Plu CPU based. It's a card edge 230 pin form factor. Small dimension (40mmx71mm) Ideal for multimedia and high performance applications.Suppo...

By Elettronica GF s.r.l. Gold Partner
Module
MAYA-W2

Compact Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 host-based multiradio modules, secure tri-radio 1/2 antenna pins, U.FL connectors or embedded antenna MAYA-W260, MAYA-W261, MA...

By u-blox AG Gold Partner
Module
MAYA-W1

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 or 2 antenna pins, U.FL connectors, or embedded antenna MAYA-W160-00B, MAYA-W161-00B, MAYA-W166-00B, MAYA-...

By u-blox AG Gold Partner
Module
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
AW-PU580

i.MX 8M Plus SoM.

By AzureWave Technologies, Inc. Gold Partner
Module
IOT-DIN-IMX8PLUS

IOT-DIN-IMX8PLUS is a modular, DIN rail i.MX8M Plus IoT Edge Gateway designed for industrial control and monitoring applications.

By Compulab Gold Partner
Module
3SM2008 NXP i.MX 8M Plus - Arm® Cortex®CPU

3SM1010 is a NXP i.MX 8M Plu CPU based. 300 pin board to board small dimension (39x49mm). Ideal for multimedia, high performance and rugged applications. Supports all NXP...

By Elettronica GF s.r.l. Gold Partner
Module
SBC ORCA

ORCA SBC is part of DAVE Embedded Systems'portfolio of Single Board Computer solutions it is based on ORCA SOM System On Module based on NXP's System On Chip.

By DAVE Embedded Systems Gold Partner
Module
LILY-W1

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold Partner
Module
TEVS-AR0145

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold Partner
