1. Plug It In

1.1 Plug It In and Demo of LPC55S69

Mark as complete:1.1 Plug It In and Demo of LPC55S69

1.2 Get Familiar with the Board

LPC55S69-EVK-GS-1-1

Mark as complete:1.2 Get Familiar with the Board

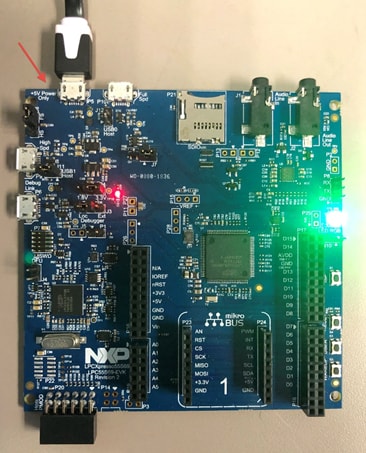

1.3 Attach the USB Cable

There are four micro-USB connectors on the board. One each for Full and High Speed USB, one for supplying power only and one for debug. Plug the USB cable into the one labeled +5 V Power Only as shown in the photo.

LPC55S69-EVK-GS

Mark as complete:1.3 Attach the USB Cable

1.4 Run the Out-of-the-Box Demo

Your LPCXpresso55S69 board comes loaded with a program to verify that target MCU is running.

The application is active if the green LED in the RGB-LED flashed with a 1 Hz rate.

Mark as complete:1.4 Run the Out-of-the-Box Demo

1.5 Switch and LED Test

Press the [WAKEUP] button. Verify that the blue LED in the RGB-LED is constant on while pressing
Press the [USER] button. Verify that the green LED in the RGB-LED is constant on (with only short off-flashes)
Press the [ISP] button. Verify that the red LED in the RGB-LED is constant on while pressing
Press the [RESET] button. Verify that the RGB-LED turns off while pressing

Mark as complete:1.5 Switch and LED Test

1.6 Audio Test

For this test you need:

A line level audio source like a PC, smartphone or tablet
A stereo audio cable to connect the audio source to the LPC55S69 board
A stereo audio headphones or speaker

Instructions

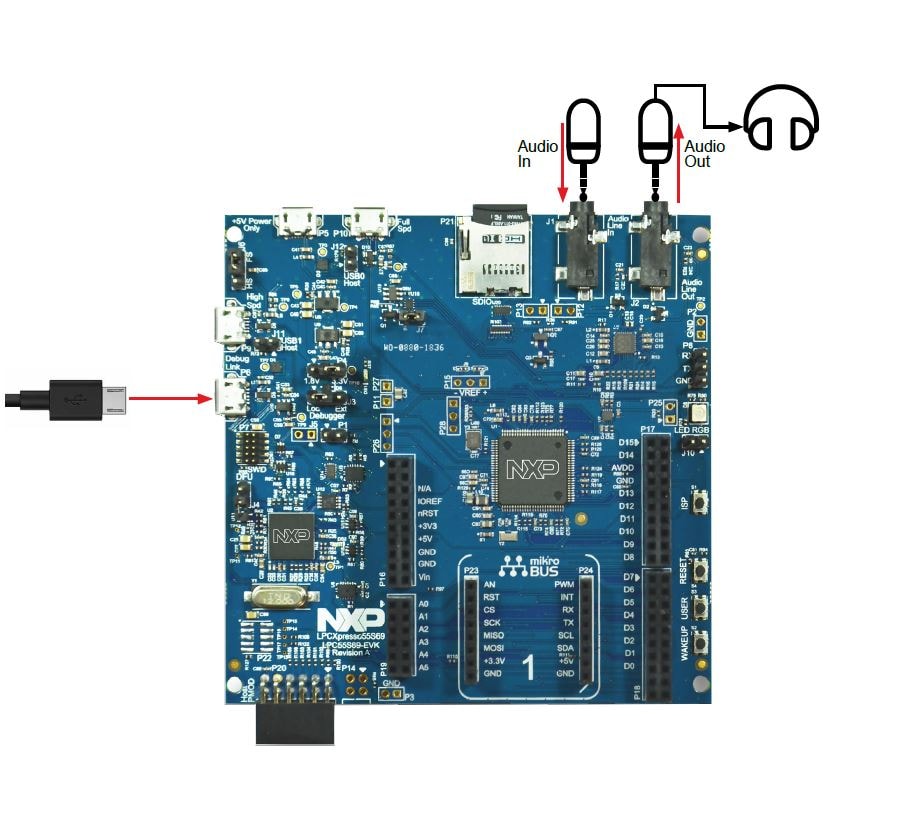

Plug in the audio source to the [Audio Line In] connector
Connect headphones or speaker to the [Audio Line Out] connector
Play audio from device connected as input
Verify you listen to the audio on the headphones

AUDIO-DEMO-LPC55S69

OOB_test demo source code is available in SDK.

Mark as complete:1.6 Audio Test

NextGet Software

2. Get Software

The software and tools installation is detailed in two short videos or you can choose to follow the steps below.

2.1 Jump Start Your Design with the MCUXpresso SDK

Want to learn about SDK?

Get MCUXpresso SDK

You can also use the online SDK Builder to create a custom SDK package for the LPC55S69-EVK using the SDK builder The board name for the SDK is LPCXpresso55S69 SDK Builder.

Mark as complete:2.1 Jump Start Your Design with the MCUXpresso SDK

2.2 Install Your Toolchain

NXP offers a complimentary toolchain called MCUXpresso IDE.

Get MCUXpresso IDE

Want to use a different toolchain?

Need help choosing?

Mark as complete:2.2 Install Your Toolchain

2.3 MCUXpresso Config Tools

The MCUXpresso Config Tool is an integrated suite of configuration tools that guides users in creating new MCUXpresso SDK projects, and provides pin and clock tools to generate initialization C code for custom board support. It is fully integrated into MCUXpresso or you can download a seperate tool. Click the Get MCUXpresso Config Tools below to get the Config Tools installer.

Get MCUXpresso Config Tools

To learn more about the basic interactions between the tools wh working with either an imported MCUXpresso SDK example project or creating a new project within the IDE, watch this three-part video series.

Basic Application Development Using MCUXpresso IDE and MCUXpresso Config Tools

Mark as complete:2.3 MCUXpresso Config Tools

2.4 Debug Probe Firmware Update Using LPCScrypt

To set up your LPCXpresso55S69 for use with 3rd party tools, first install LPCScrypt in order to install the board’s device drivers. The video below shows how to use LPCScrypt to program your board’s debug probe using this utility.

Mark as complete:2.4 Debug Probe Firmware Update Using LPCScrypt

2.5 Serial Terminal

Most of the MCUXpresso SDK examples set up for IAR and Keil tools use the MCU UART for printf output, and this is also an option for the MCUXpresso IDE. If you are not sure how to use a terminal application try one of these tutorials:

Not sure how to use a terminal application? Try one of these tutorials: MCUXpresso Terminal, Tera Term Tutorial, PuTTY Tutorial.

Mark as complete:2.5 Serial Terminal

PreviousPlug It In

NextBuild, Run

3. Build, Run

A short video is provided to walk you through this process or you can follow along the steps below.

3.1 Explore the MCUXpresso SDK Example Code

The MCUXpresso SDK comes with a long list of example applications code. To see what's available, browse to the SDK boards folder of your SDK installation and select LPCXpresso55S69.

<SDK_Install_Directory>/boards/LPCXpresso55S69

To learn more about specific example code, open the readme.txt file in an example’s directory.

Mark as complete:3.1 Explore the MCUXpresso SDK Example Code

3.2 Building and Debuging MCUXpresso SDK Examples

If one or more of the demo applications or driver examples sounds interesting, you're probably wanting to know how you can build and debug yourself. The Getting Started with MCUXpresso SDK guide provides easy, step-by-step instructions on how to configure, build, and debug demos for all toolchains supported by the SDK.

Use the guide below to learn how to open, build and debug an example application using the MCUXpresso IDE.

Running a Demo Using MCUXpresso IDE

Import the MCUXpresso SDK

Open the MCUXpresso IDE
Switch to the Installed SDKs view within the MCUXpresso IDE window
Drag and drop the LPCXpresso55S69 SDK (zipped) file into the Installed SDKs view
You will get the following pop-up. Click on OK to continue the import:
The installed SDK will appear in the Installed SDKs view as shown below:

Build an Example Application

The following steps will guide you through opening the hello_world example

Find the Quickstart Panel in the lower left-hand corner
Click on the LPCXpresso55S69 board to select that you want to import an example that can run on that board, and then click on Next
Use the arrow button to expand the demo_apps category, and then click the checkbox next to hello_world to select that project. To use the UART for printing (instead of the default semihosting), Select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish
Now build the project by clicking on the project name and then in the Quickstart Panel click on Build or press “Ctrl + b”. Or you can click on the hammer icon in the tool bar

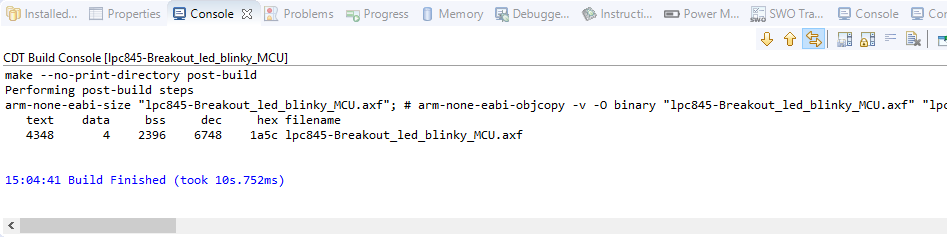

You can see the status of the build in the console tab

Run an Example Application

Now that the project has been compiled, you can now flash it to the board and run it
Make sure the LPCXpresso51U68 board is plugged in, and click on Debug in the Quickstart Panel
MCUXpresso IDE will probe for connected boards and should find the CMSIS-DAP debug probe that is part of the integrated LPC-LINK2 circuit on the LPCXpresso55S69. Click on OK to continue
Select the Cortex-M33 Device or Core 0 and press OK
The firmware will be downloaded to the board, and the debugger started
Open a terminal program and connect to the COM port the board enumerated as. Configure the terminal with these settings:

Start the application by clicking the "Resume" button:
The hello_world application is now running, and a banner is displayed on the terminal. If this is not the case, check your terminal settings and connections. You can type on the terminal console and the characters will be echoed back
Use the controls in the menu bar to pause, step into, and step over instructions, and then stop the debugging session by click on the Terminate icon:

Using a different toolchain?

This demo is also available for IAR and KEIL.

Running a Demo Using IAR Embedded Workbench ID

Build an Example Application

The following steps will guide you through opening the hello_world application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path.

First unzip the previously downloaded SDK
If not already done, open the desired example application workspace. Most example application workspace files can be located using the following path:
```
/boards////iar
```
Using the hello_world demo as an example, the path is:
```
/boards/LPCXpresso55S69/demo_apps/hello_world/cm33_core0/iar
```
Select the desired build target from the drop-down. For this example, select the “hello_world – Debug” target
To build the application, click the “Make” button, highlighted in red below
The build will complete without errors.
Note: In case of building errors, make sure that the correct Board is selected, right click in the project >> Options >> General Options >> Target >> Device, Select the LPC55S69, this board is support in the on IAR Embedded Workbench for Arm version 8.22.2 or Higher.

Run an Example Application

The LPCXpresso55S69 board comes loaded with the CMSIS-DAP debug interface from the factory. If you have changed the debug LPC-LINK2 application on your board, visit step 2.4 LPCScrypt tutorial in this getting started.

Connect the development platform to your PC via USB cable to P6 “Debug Link.” Ensure the DFULink jumper (J4) is removed when powering the board to boot the debug probe from internal flash
Open the terminal application on the PC (such as PuTTY or Tera Term) and connect to the debug COM port you determined earlier. Configure the terminal with these settings:
- 115200 baud rate
- No parity
- 8 data bits
- 1 stop bit
Click the "Download and Debug" button to download the application to the target
The application is then downloaded to the target and automatically runs to the main() function
Run the code by clicking the "Go" button to start the application

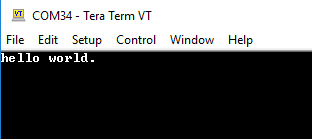

The hello_world application is now running, and a banner is displayed on the terminal. If this is not the case, check your terminal settings and connections

Running a Demo Using Keil^® MDK/µVision^®

Install CMSIS Device Pack

After the MDK tools are installed, Cortex^® Microcontroller Software Interface Standard (CMSIS) device packs must be installed to fully support the device from a debug perspective. These packs include things such as memory map information, register definitions and flash programming algorithms. Follow these steps to install the appropriate CMSIS pack.

Open the MDK IDE, which is called µVision. In the IDE, select the "Pack Installer" icon

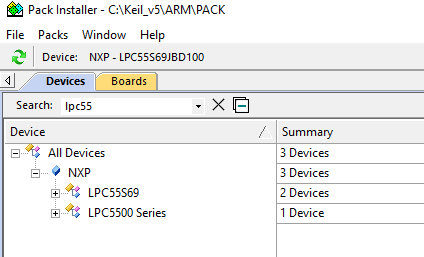

In the Pack Installer window, search for “LPC55S69” to bring up the LPC55S69 family. Click on the LPC55S69 name, and then in the right-hand side you’ll see the NXP::LPCXpresso55S69 _DFP pack. Click on the “Install” button next to the pack. This process requires an internet connection to successfully complete. You can do the same thing for the LPCXpresso55S69 board support package
After the installation finishes, close the Pack Installer window and return to the µVision IDE

Build the Example Application

If not already done, open the desired demo application workspace in:
```
/boards/////mdk
```
The workspace file is named .uvmpw, so for this specific example, the actual path is:
```
/boards/LPCXpresso55S69/demo_apps/hello_world/mdk/hello_world.uvmpw
```

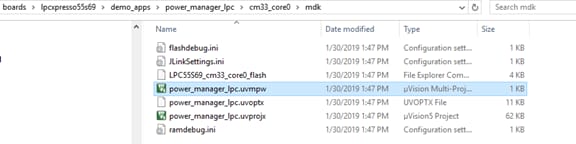

For example the power manager example project file is here
To build the demo project, select the "Rebuild" button, highlighted in red
The build will complete without errors

Run an Example Application

The LPCXpresso55S69 board comes loaded with the CMSIS-DAP debug interface from the factory. If you have changed the debug LPC-LINK2 application on your board, check the LPCScrypt tutorial describe in the past section
Connect the development platform to your PC via USB cable to P6 “Debug Link”. Ensure the DFULink jumper (J4) is removed when powering the board to boot the debug probe from internal flash
Open the terminal application on the PC (such as PuTTY or Tera Term) and connect to the debug COM port you determined earlier. Configure the terminal with these settings:
- 115200 baud rate
- No parity
- 8 data bits
- 1 stop bit
After the application is properly built, click the "Download" button to download the application to the target
Click on “Start/Stop Debug Session” to open the debug view
Run the code by clicking the "Run" button to start the application

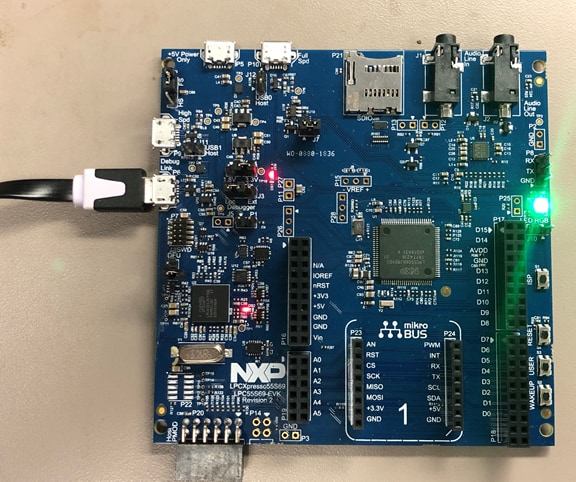

The application is now running, you are going to see the RGB blue led Blinky every second

Mark as complete:3.2 Building and Debuging MCUXpresso SDK Examples

3.3 Building and Debuging MCUXpresso SDK Examples

Now its time to plug in the board to debug your project:

Make sure the DFU jumper J4 is removed
Plug the micro USB cable from the PC into the Debug Link micro USB connector as shown
In the Project Exporer window in MCUXpresso select your project
In the Quick Start Panel click on Debug
Choose the CMSIS-DAP debug interface
Choose Core 0 for the target core
Hit Resume to get the code running after the breakpoint at the beginning of main ()

More details can be found in the SDK getting started documents found in the SDK folder

<SDK_Install_Directory>/docs/Getting Started with MCUXpresso SDK for LPC55xx.pdf

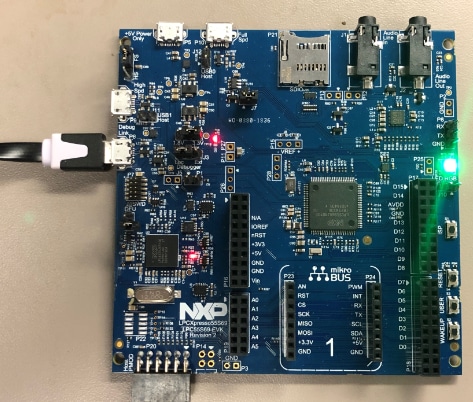

LPC55S69-3-3

Mark as complete:3.3 Building and Debuging MCUXpresso SDK Examples

3.4 More Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples are listed below:

Shell demo (UART example)
USB examples
NTAG I²C explorer blink
Power manager demo

Mark as complete:3.4 More Examples

PreviousGet Software

NextProject and Tutorials: Security and Integrity

Security and Integrity

The LPC55S69 is secure-by-design and supported by secure software driving the secure System on a Chip (SoC).

Document	Description
AN12278 LPC55S00 Security Solutions for IoT	This document lays out the differences and advances in the security systems for each LPC55Sxx MCU.
AN12324 LPC55Sxx usage of the PUF and Hash Crypt to AES coding	How to securely generate, store and retrieve user keys using the root key.
AN13094 Using FreeRTOS on LPC55Sxx Series Microcontrollers with TrustZone	How to use FreeRTOS in an ARMv8-M processor that supports TrustZone.
TrustZone with ARMv8-M and the NXP LPC55S69-EVK	An introduction to the ARM TrustZone security feature using MCUXpresso SDK examples and the LPC55S69 EVK.
How to Debug TrustZone Project on MCUXpresso IDE	Introduces debugging TrustZone on the LPCXresso55S69 board using “hello_world” as an example.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples related to security are listed below.

TrustZone Examples

Several simple demonstrations are available in the TrustZone examples including a hello world, secure faults and secure gpio.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/trustzone_examples</SDK_PATH>

PUF Hashcrypt Crypto Demo

How to use the PUF controller which provides secure key storage and then sends a secret key via dedicated HW bus directly to Hashcrypt, which uses this key to encrypt data.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/demo_apps_puf_hashcrypt_crypto

MCUXpresso Secure Provisioning Tool

A GUI-based application provided to simple generation and provisioning of bootable executables on NXP MCU devices.

PreviousBuild, Run

NextProject and Tutorials: Wired Communications

Wired Communications

Document	Description
Using ConfigTool to Create USB Project From Start	Creating a USB project with MCUXpresso Config Tool and the LPCXpresso55S69-EVK.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples related to wired communications are listed below.

Shell Demo (UART example)

Demonstrates how to implement a command line shell application.

Path:

<SDK_PATH>/boards/lpcxpresso55s16/demo_apps/shell

Driver Examples

A number of driver examples exist within the SDK including GPIO, I²C, I²S, SPI and UART.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/driver examples

USB Examples

A number of USB examples for host and device operation exist within the SDK.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/usb_examples

PreviousProject and Tutorials: Security and Integrity

NextProject and Tutorials: Wireless Connectivity

Wireless Connectivity

Document	Description	Aplication Note Software
AN12805 Establish Secure Connection with Private Cloud	How to create a secure embedded software project with the LPCXpresso55S69 board.	Download
Connecting the LPC55S69 to Amazon Web Services	Demo focused on the WIFI enablement and cloud connectivity through AWS using MCUXpresso and an Amazon Alexa.	-
How to Add Peripherals to AWS IOT and Alexa Skills	Step-by-step approach to adding peripherals to your AWS IOT and Alexa Skills project.	-

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. A common example related to wireless connectivity is listed below.

NTAG I²C Explorer Blink

Shows use of NT3H2111_2211 NTAG I²C plus Connected NFC Tag with I²C Interface Chip and demonstrates basic communication with the device.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/ntag_i2c_plus_examples/ntag_i2C_explorer_blink

PreviousProject and Tutorials: Wired Communications

NextProject and Tutorials: Multicore and Hardware Acceleration

Multicore and Hardware Acceleration

The LPC55S69 platform includes two Arm Cortex-M33 cores running up to 100 MHz. Core 0 includes TrustZone, FPU and two 64-bit Accelerators. The DSP Accelerator is called the PowerQuad DSP co-processor.

Document	Description
AN12282 Digital Signal Processing for NXP LPC5500 Using PowerQuad	The PowerQuad co-processor is a DSP accelerator that aids the CPU cores in performing mathematical operations such as matrix calculations, filtering, and transform functions, including FFT.
AN12335 LPC55xx/LPC55Sxx Dual Core Communication	The LPC55xx/LPC55Sxx provides a simple hardware means called Inter-CPU Mailbox mechanism for communication.
AN12358 LPC55xx/LPC55Sxx Dual-Core Debug in MCUXpresso	How to debug the asymmetric dual cores of the LPC55S6x.
LPC55xx Multicore Applications with MCUXpresso IDE	How to create, build and debug LPC55xx multicore applications using the LPC55S69-EVK and the MCUXpresso SDK.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. A common example related to multicore and hardware acceleration is listed below.

Multicore Examples

Includes how to set up projects for individual cores on a multicore system.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/multicore_examples

PreviousProject and Tutorials: Wireless Connectivity

NextProject and Tutorials: Audio

Audio

Document	Description
AN12939 Implementation of 5.1-channel Audio Solution on LPC55xx	The on-board DSP accelerator makes the LPC55S69 very suitable for USB audio applications.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples related to audio are listed below.

SDK Audio Demos

Bare metal and FreeRTOS examples that enumerate a recording or playback device.

USB Device: Audio generator, audio speaker, composite hid audio

USB Host: Audio Speaker

Path:

<SDK_PATH>/boards/lpcxpresso55s69/usb_examples

PreviousProject and Tutorials: Multicore and Hardware Acceleration

NextProject and Tutorials: Display and Graphics

Display and Graphics

The SDK for the LPC55S69 includes graphic examples using the Adafruit TFT LCD shield.

Software	Description
Graphical User Interfaces for NXP Microcontrollers	Learn more about your GUI options for NXP Microcontrollers.
Open Source LittlevGL GUI Library on Adafruit Touch LCDs with NXP LPC55S69-EVK	Driving Adafruit LDC Display with Capacitive Touch and MCULib.
LVGL Open-Source Graphics Library	LVGL is a free and open-source embedded graphic library with features that enable you to create embedded GUIs with intuitive graphical elements, beautiful visual effects and a low memory footprint.
GUI Guider	A user-friendly graphical user interface development tool from NXP that enables the rapid development of high quality displays with the open-source LVGL graphics library.
NXP emWin Libraries	NXP has partnered with SEGGER Microcontroller to offer the high performance emWin embedded graphics libraries in binary form for free commercial use with any Arm Cortex-M microcontrollers from NXP.
GUI Development With emWin and AppWizard	How to use the different features in AppWizard to create complete, ready-to-run projects based on emWin.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples related to display and graphics are listed below.

LVGL Examples

A demo application to show littlevgl widgets.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/littlevgl_examples

emWin GUI Demo

Demonstrates the graphical widgets of the emWin library.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/emwin_gui_demo

PreviousProject and Tutorials: Audio

NextProject and Tutorials: Camera Interfaces

Camera Interfaces

Document	Description	Application Note Software
AN12868 Camera Interface in LPC55(S)xx	Introduces the camera interface, features and API routines and demo.	Download

PreviousProject and Tutorials: Display and Graphics

NextProject and Tutorials: Motor Control

Motor Control

Document	Description
FreeMASTER How To	A starting guide for engineers using FreeMASTER tool.
FreeMASTER 3.0 - Installation Guide	This article will walk you through the installation process of FreeMASTER 3.0.
FreeMASTER Four-Part Webinar Series	On-demand training provides an overview of the FreeMASTER software, its features, capabilities, available examples, application use cases and how to easily get started.

MCUXpresso SDK Examples

Several examples, demos and drivers are available within the SDK to help you get started. Some common examples related to Motor Control are listed below.

Middleware

Path:

<SDK_PATH>/middleware/motor_control

FreeMASTER Examples

Watch variables and graphs over various interface options.

Path:

<SDK_PATH>/boards/lpcxpresso55s69/freemaster_examples

FreeMASTER Communication Driver User’s Guide

Describes the embedded-side software driver which implements a serial interface between the application and the host PC and covers the native Serial UART communication and CAN communication for the applicable devices.

Path:

<SDK_PATH>/middleware/freemaster/doc/user_guide

PreviousProject and Tutorials: Camera Interfaces

NextDesign Resources

Design Resources

Board Documents

Chip Documents

Software

PreviousProject and Tutorials: Motor Control

NextSupport

Support

Training

Training	Description
Basic Application Development Using MCUXpresso IDE and MCUXpresso Config Tools	This three-part video series covers the basic interactions between the MCUXpresso IDE and Config Tools when working with either an imported SDK example project or creating a new one.
LPC55s6X Training	Full list of on-demand training, how-to videos and webinars from NXP about this product.

Forums

Connect with other engineers and get expert advice on designing with the LPC55 family on one of our community sites.

PreviousDesign Resources

Getting Started with the LPC55S69-EVK Evaluation Board

Contents of this document

Purchase your LPC55S69-EVK

1. Plug It In

1.1 Plug It In and Demo of LPC55S69

1.2 Get Familiar with the Board

LPC55S69-EVK-GS-1-1

1.3 Attach the USB Cable

LPC55S69-EVK-GS

1.4 Run the Out-of-the-Box Demo

1.5 Switch and LED Test

1.6 Audio Test

Instructions

AUDIO-DEMO-LPC55S69

2. Get Software

2.1 Jump Start Your Design with the MCUXpresso SDK

2.2 Install Your Toolchain

Want to use a different toolchain?

2.3 MCUXpresso Config Tools

2.4 Debug Probe Firmware Update Using LPCScrypt

2.5 Serial Terminal

3. Build, Run

3.1 Explore the MCUXpresso SDK Example Code

3.2 Building and Debuging MCUXpresso SDK Examples

Running a Demo Using MCUXpresso IDE

Import the MCUXpresso SDK

Build an Example Application

Run an Example Application

Using a different toolchain?

Running a Demo Using IAR Embedded Workbench ID

Build an Example Application

Run an Example Application

Running a Demo Using Keil® MDK/µVision®

Install CMSIS Device Pack

Build the Example Application

Run an Example Application

3.3 Building and Debuging MCUXpresso SDK Examples

LPC55S69-3-3

3.4 More Examples

Security and Integrity

MCUXpresso SDK Examples

TrustZone Examples

PUF Hashcrypt Crypto Demo

Wired Communications

MCUXpresso SDK Examples

Shell Demo (UART example)

Driver Examples

USB Examples

Wireless Connectivity

MCUXpresso SDK Examples

NTAG I²C Explorer Blink

Multicore and Hardware Acceleration

Multicore and Hardware Acceleration

MCUXpresso SDK Examples

Multicore Examples

Audio

MCUXpresso SDK Examples

SDK Audio Demos

Display and Graphics

MCUXpresso SDK Examples

LVGL Examples

emWin GUI Demo

Camera Interfaces

Camera Interfaces

Motor Control

MCUXpresso SDK Examples

Middleware

FreeMASTER Examples

FreeMASTER Communication Driver User’s Guide

Design Resources

Board Documents

Chip Documents

Software

Support

Training

Forums

On this page

Running a Demo Using Keil^® MDK/µVision^®
