Product Details

Block Diagram

High-Voltage Development Platform Block Diagram

Get diagram PDF

Supported Devices

Processors and Microcontrollers

KE Series Arm Cortex-M4/M0+

KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm^® Cortex^®-M4

KV Series Arm Cortex-M4/M0+/M7

KV1x: Kinetis^® KV1x-75 MHz, Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm^® Cortex^®-M0+
KV3x: Kinetis^® KV3x-100–120 MHz, Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm^® Cortex^®-M4
KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm^® Cortex^®-M4
KV5x: Kinetis^® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm^® Cortex^®-M7

LPC5500 Arm Cortex-M33

LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family

32-Bit 56800EX/EF Core

MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
MC56F81xxx: Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder
MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD

Features

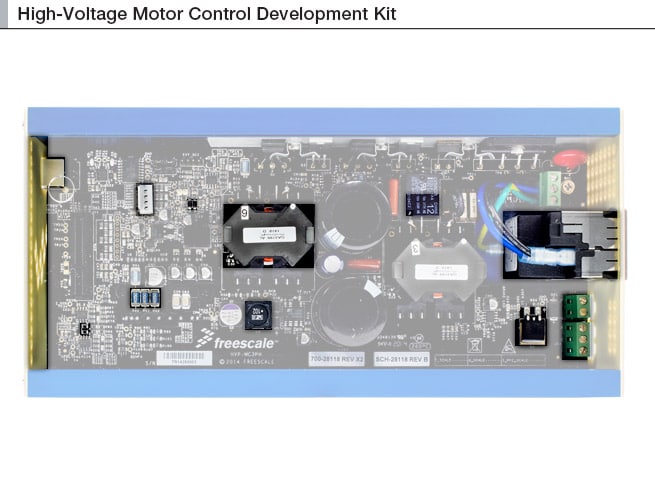

Mainboard (power stage)

Input voltage 85-240 V AC, 110-390 VDC
Output power 1 kW without PFC, 0.8 kW with PFC
Output current 8 A peak
Analog sensing (input voltage, DCB voltage, DCB current, phase currents, back-EMF voltage, PFC currents, IGBT module temperature monitoring)
Motor speed/position sensors interface (Encoder, Hall, Tacho generator)
Overvoltage comparator with DC-brake resistor interface
Current inrush circuit
Hardware over-current fault protection

Controller cards

Accommodates target MCU (KE1xF, KV10, KV31, KV46, KV58, MC56F81768, MC56F80748, MC56F82748, MC56F83783)
SWD / JTAG and SCI isolation up to 5 kV
Onboard isolated power supply, allowing safe debugging
Controller card allows standalone operation
New OpenSDA debug interface
Mass storage device flash programming interface (default)
P&E multilink debug interface provides run-control debugging and compatibility with IDE tools
SEGGER J-Link-Lite allows users to take advantage of most J-Link features like the ultra-fast flash download and debugging speed or the free-to-use GDBServer
Can be powered by mini USB or by the main board

High-Voltage Development Platform Package Options

Part Number	Features
HVP-MC3PH	HVP-MC3PH High-Voltage Development Platform which includes the HVP-KV46F150M Controller Card
HVP-KV58F	KV58 240MHz ARM CortexM7 MCU Controller Card, optional
HVP-KV46F150M	KV46 150MHz ARM Cortex-M4 MCU Controller Card, included
HVP-KV31F120M	KV31 120MHz ARM Cortex-M4 MCU Controller Card, optional
HVP-KV11Z75M	KV11 75MHz ARM CortexM0+ MCU Controller Card, optional
HVP-KV10Z32	KV10 75MHz ARM Cortex-M0+ MCU Controller Card, optional
HVP-56F83783	MC56F83783 Digital Signal Controller Card, optional
HVP-56F82748	MC56F82748 Digital Signal Controller (DSC) Controller Card, optional
HVP-56F81768	MC56F81768 Digital Signal Controller Card, optional
HVP-56F80748	MC56F80748 Digital Signal Controller Card, optional

Kinetis Designs - A Reference Design Library

Leverage this library of resources and reference designs using Kinetis MCUs to help jump-start your next embedded project.

3-Phase PMSM Motor Control

3-Phase Brushless DC Motor Control

3-Phase AC Induction motor Control

Buy Options

Click to expand

HVP-MC3PH
Active
High-Voltage Development Platform.

Kit Contains:

- HVP-MC3PH High-Voltage Development Platform (main board)
- HVP-KV46F150M Controller Card
- USB 2.0 cable, Receptacle A to plug B
- USB 2.0 cable, Receptacle A to mini B
- AC cable: USA/Canada, UK, JPN, EU

$690.00 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

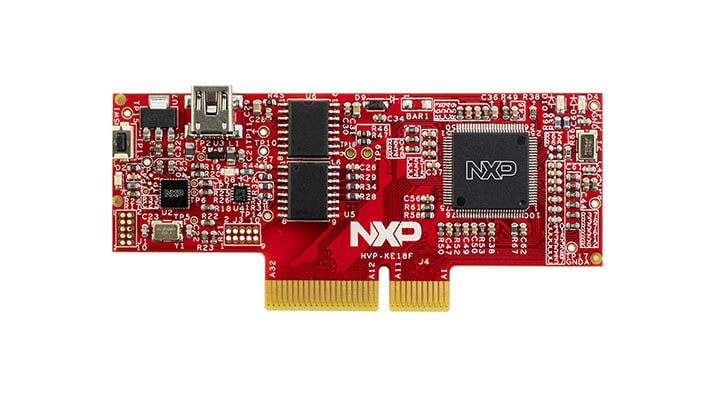

HVP-KE18F
Active
HVP-KE18F.

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-KV58F
Active
HVP-KV58F.

$57.50 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-KV46F150M
Active
High-Voltage Development Platform Controller Card, Kinetis V MCU, KV46, 150 MHz.

$57.50 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 1
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-KV31F120M
Active
High-Voltage Development Platform Controller Card, Kinetis V MCU, KV31, 120 MHz.

$90.85 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-KV11Z75M
Active
HVP-KV11Z75M.

$57.50 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-KV10Z32
Active
High-Voltage Development Platform Controller Card, Kinetis V MCU, KV10, 75 MHz.

$90.85 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-56F83783
Active
High-Voltage Development Platform.

Kit Contains:

High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz

$57.50 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 15
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-56F82748
Active
High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz.

$57.50 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-56F81768
Active
High-Voltage Development Platform.

$57.50 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HVP-56F80748
Active
High-Voltage Development Platform.

$57.50 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 3
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
