Layerscape LS1012A Smart Home Gateway Reference Design

SMART-HOME-GATEWAY

Roll over image to zoom in

NXP’s Smart Home Gateway Reference Design provides a bridge from a wide area network (WAN/Cloud) connection to a local area network, usually through Wi-Fi and/or Ethernet, while supporting a wide array of wireless communication protocols in the home. Based on the Layerscape® LS1012A processor and the LS1012A Broadband Home Router Application Solution Kit, it allows developers to easily leverage a highly optimized software stack.

Block Diagram

Smart Home Gateway

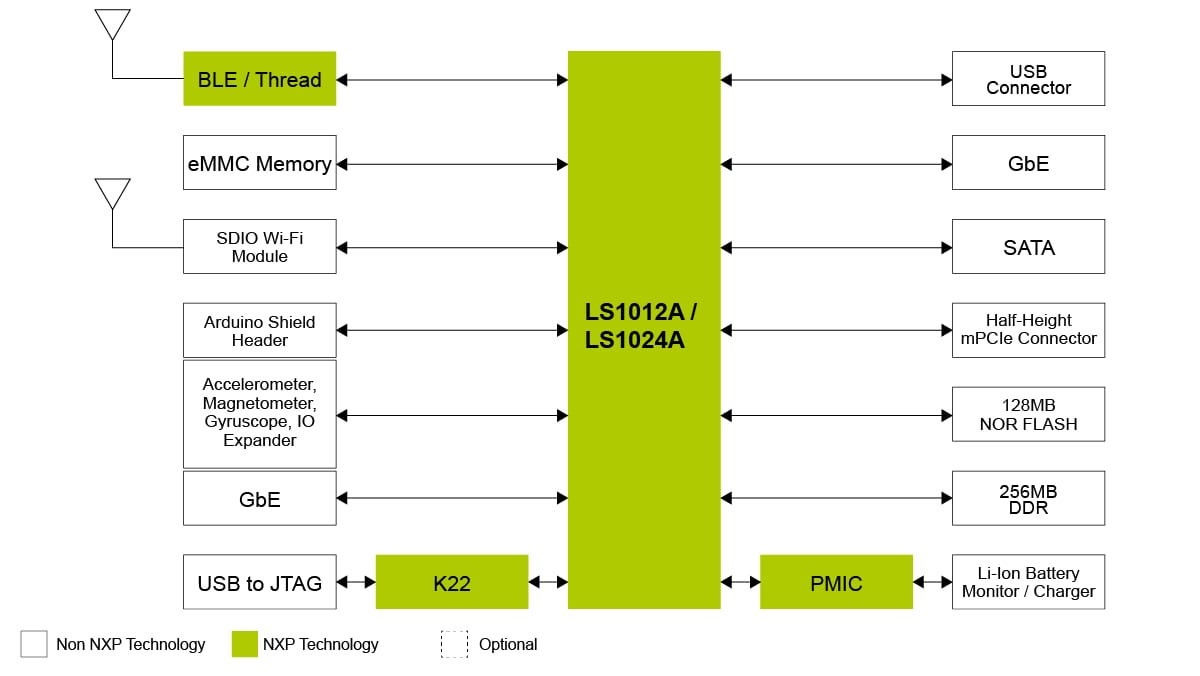

Smart Home Gateway Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Wireless MCUs

  • KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

RFID

NFC Readers

  • PN7150: High-Performance NFC Controller with Integrated Firmware for Smart Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1024A: Layerscape® 1024A Dual-Core Processor
  • LS1012A: Layerscape® 1012A Low Power Processor

K2x / KS2x USB

  • K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Power Management

PMICs

  • VR5100: Multi-Output DC-DC Regulator for Low Power LS1 Communication Processors

Interfaces

USB Interfaces

Features

  • Integrated hardware and software based on customer requirements
  • 10M+ systems deployed
  • Market proven in service provider networks
  • Authentication with secure boot
  • Platform control - tamper detection
  • Secure data/communication encryption
  • Interfaces
    • Gigabit Ethernet for LAN and WAN connectivity
    • Wi-Fi for high-speed wireless with support for 802.11ac
    • ZigBee® home automation, home security and energy control applications
    • Optional: Arduino® shield header for expansion
  • Compatibility
    • OSGi/JVM based platform for third-party application support

Buy Options

LS1012ARDB-PC-Image

Click to expand

  • LS1012ARDB-PC
    Active

  • Layerscape LS1012A Reference Design Board.

    Order from distributors
    USB-KW41Z-Image

    Click to expand

    • USB-KW41Z
      Active

    • Part Description: USB-KW41Z Bluetooth Low Energy/IEEE® 802.15.4 Packet Sniffer/USB Dongle. 1 board per order..

      • Kit Contains:

    • Kit contains

      • USB-KW41Z packet sniffer/dongle
      • Quick Start Guide
    • $69.00 USD
    • For a quantity of 1
      • Availability: Pending Stock
    ADD TO CART
    Order from distributors
